3D scanning. automattic mould & bottle measuring.

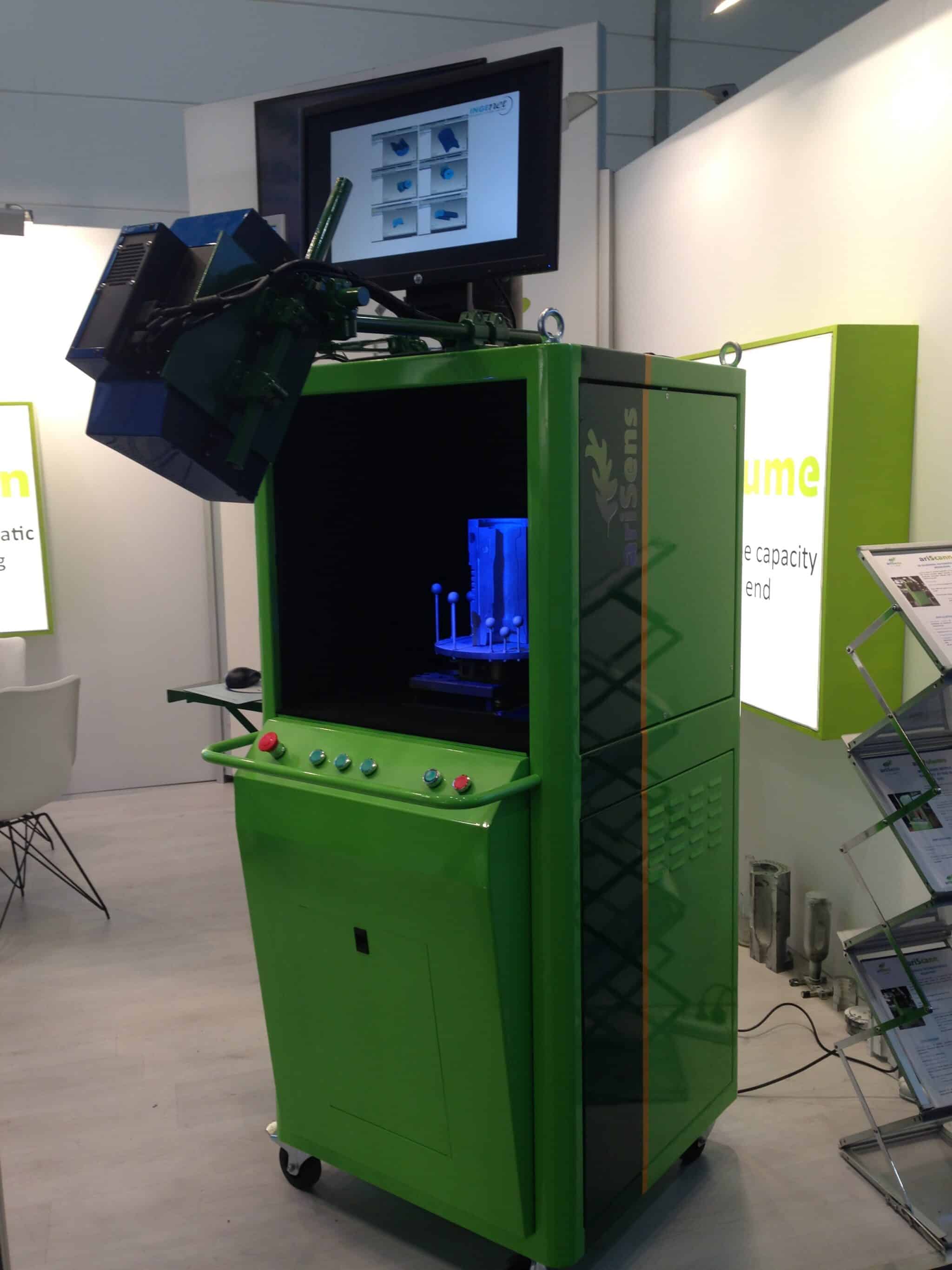

ariScann aims to provide automatic mould scanning and measuring. The device provides highly accurate 3D scanning, along with a specifically developed software that allows automatic dimensional control of moulds.Fast. Accurate. Lower priced than analogous 3D scanning systems. Scans different parts of a mould and automatically constructs a full 3D model. Automatically measures:

  • Internal and external diameters to desired levels – not to just the edges but the whole perimeter as well.
  • Internal Volume.
  • Wears on the mould surface.
  • Other: coupling, pomp-outs, ramps, cylindrical and conical diameters.
  • Base parameters: height, width, marks, diameter.


  • Dimensional control
  • Reverse Engineering. Obtaining 3D.
  • Calculation of wear and volumes.
  • Comparison with theoretical 3D.
  • Traceability
  • 3D of other solid measurement: Bottles, Tooling, punch, any solid in general.
  • Automatic 3D composition of any solid complex composed of different pieces


AriScann provides high-speed scanning,capturing the environment in just 1’’. Quickly captures measures of complex shapes to create 3D models of physical objects. Process:

  1. The mould is identified in the HMI.
  2. It is automatically singled out in the database and preset measurements to be made to the mould are determined.
  3. Pieces comprising the mould are scanned and a full 3D model is reconstructed.
  4. Full dimensional report on the aforementioned mould is provided, including full-colour 3D wear assessment and virtual volume of bottles.


  • Measurement of the parameters IMPOSSIBLE to be measured with old traditional techniques:

    • Wear with 3D colored map.
    • Virtual volume of the bottle.
    • Diameters in ALL the perimeter not only on the edge.
    • Others: couplings, pomp-outs, ramps.
  • Objective. It is not linked to worker’s expertise.

  • Traceability. Due to data measurements historic we know its evolution and its lifetime.

  • EASY TO CARRY. Portable equipment.


  • Accuracy: 50 microns
  • Speed: 3-5 minutes. Scanned, procurement of 3D of a complete mould and issue of an automatic measurement report.
  • The 3D can be exported into extended formats: 3DS, STL, OOGL, PLY, OBJ, LWO, CRP, WRP, DXF, VRML, IV
  • Possibility to import CAD from the following formats: IGES, VDA, Neutral, Parasolid, SolidWorks, Catia, NX, SAT Pro / Engineer, PRT, STEP 203/214.
Download ariScann PDF


Possibility to develop new measurement patterns tailored to each client, as a turnkey solution. So that it could be made in a fully automated way the scanned and automatic measurement of other parameters, different from the current product capability and the automatic issue of the report with results analysis and interpretation.
